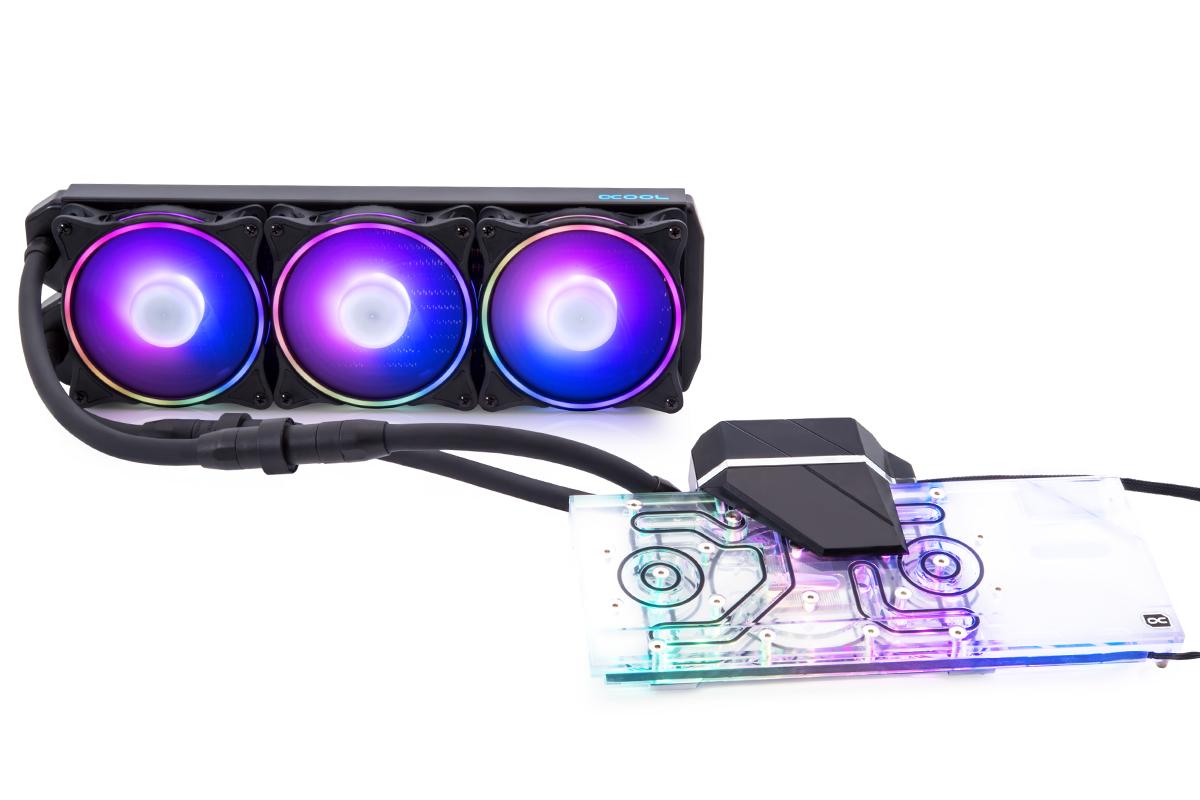

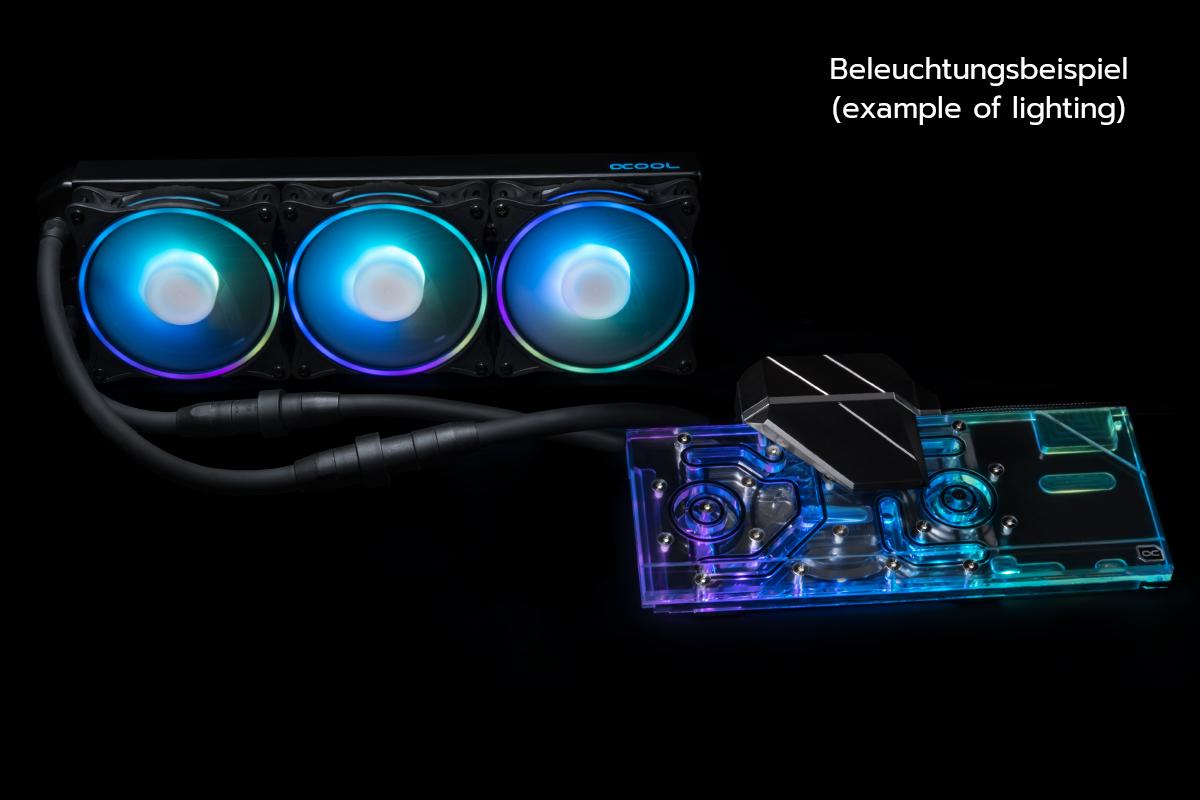

Система с водно охлаждане Alphacool Eiswolf 2 AIO – 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate

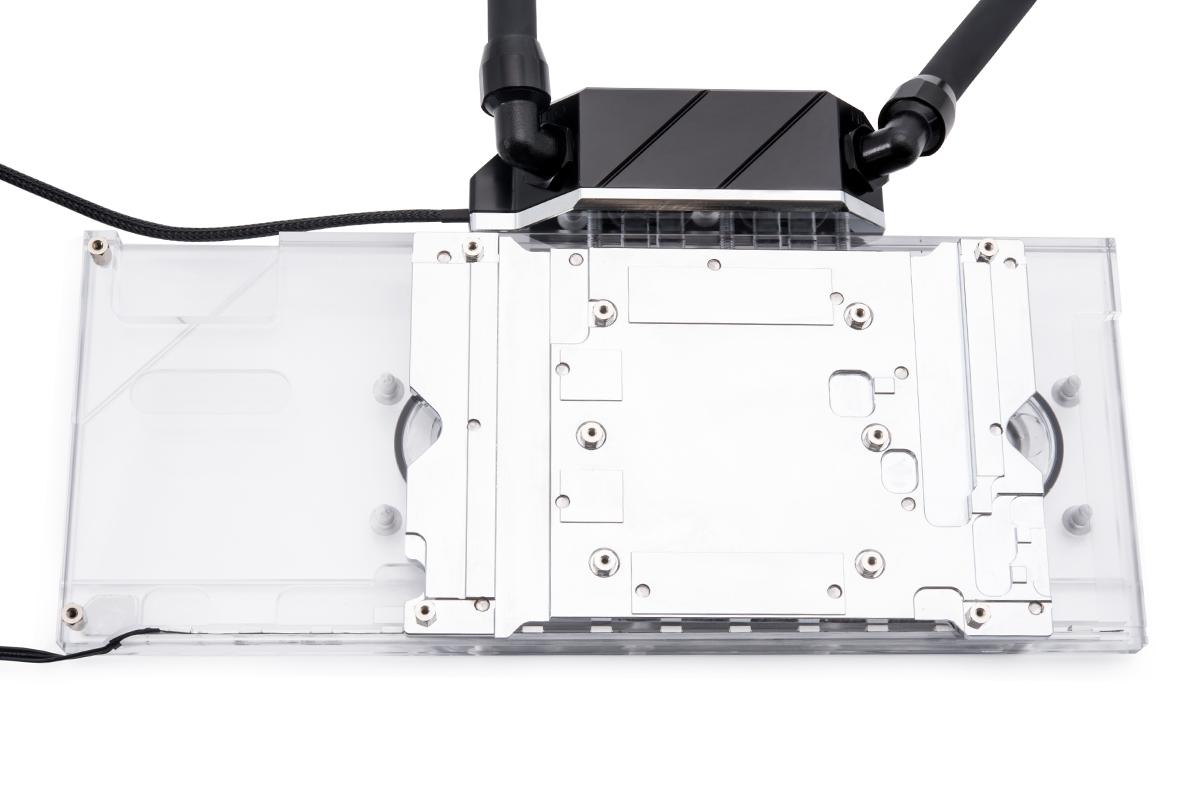

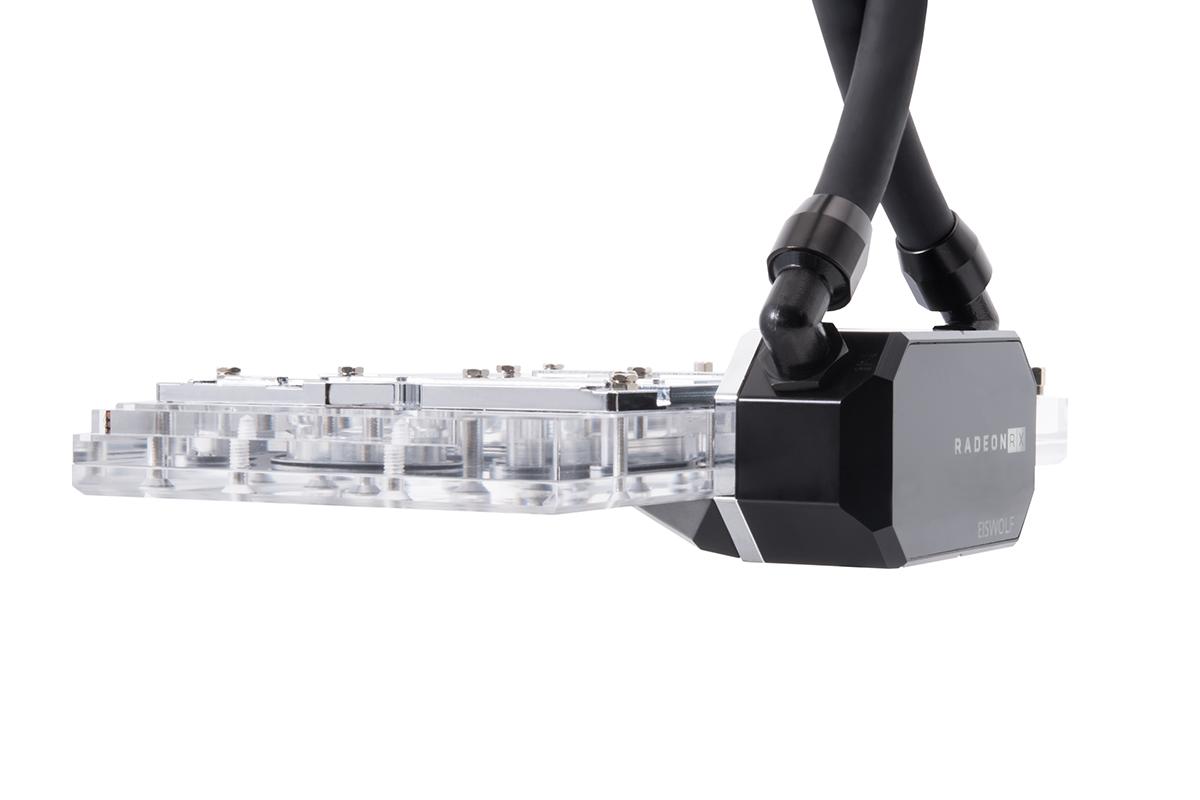

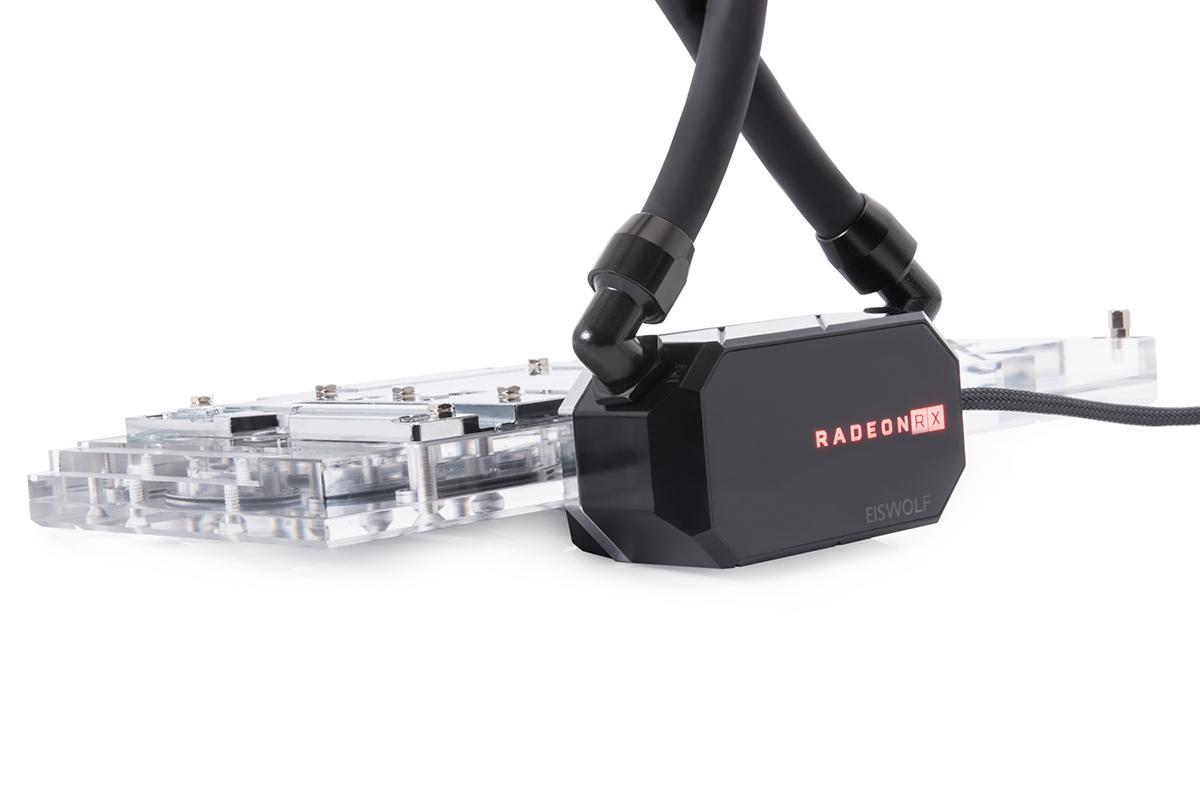

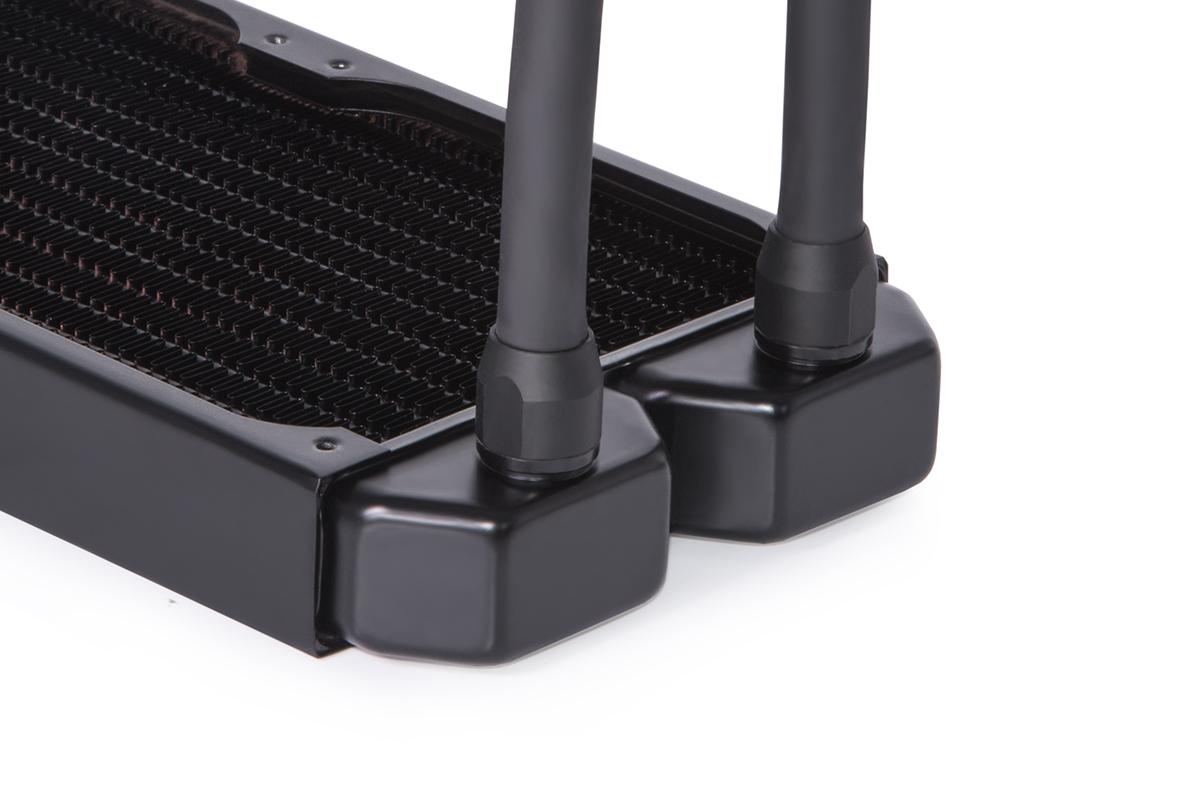

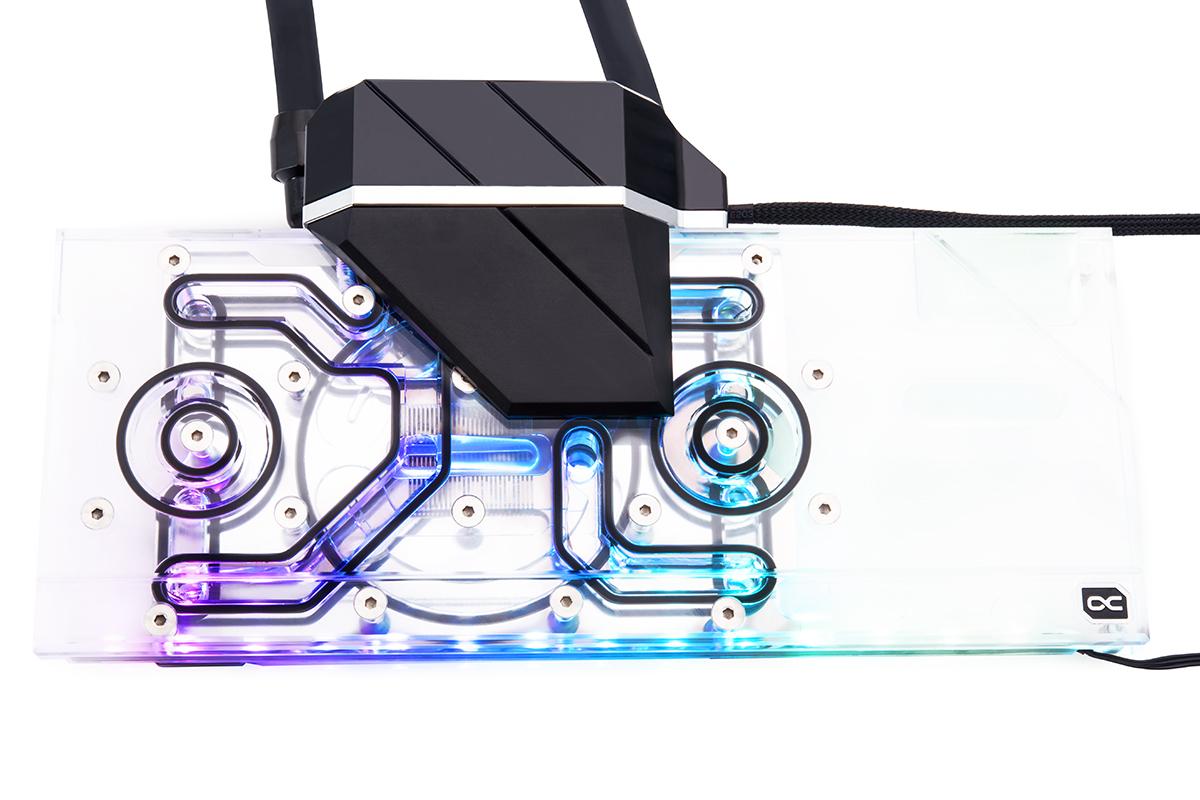

Система с водно охлаждане Alphacool Eiswolf 2 AIO – 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate Compatibility: Radeon RX 6800/6800XT/6900 graphics cards using the reference design Technical data pump/cooler unit: L x W x H 140 x 265 x 46 mm Material cooler bottom Nickel plated copper Material cooler top PMMA Threads 2 x G1/4“ Pump type DC-LT 2 Pump speed 2600 rpm (+/- 10%) Head of delivery 0,95 m Maximum flow rate 75 L/h Voltage 12V DC Power consumption 4W MTBF 50.000 h Technical data radiator: L x W x H 395 x 124 x 30mm (+/- 3%) Material cooling fins Copper Material chambers Copper Material cooling channels Copper Material threads Brass Material outer housing stainless steel G 1/4“ threads 2 x for tubes (+ 1x Fillport G1/4“) For fan size 120 mm Possible fan assembly 3 x one-sided / 6 x both-sided Technical data fan: Speed 0 – 2500 RPM Static pressure 3,17 mm H2O Air flow rate 119,8 m³/h Bearings Sleeve bearing Fan connector 4-Pin PWM Connection Digital aRGB 3-Pin JST + 3-Pin 5V Dimensions 120 x 120 x 25 mm Net weight 187 g Max working temperature 60 °C Certificates CE, FC, ROHS
